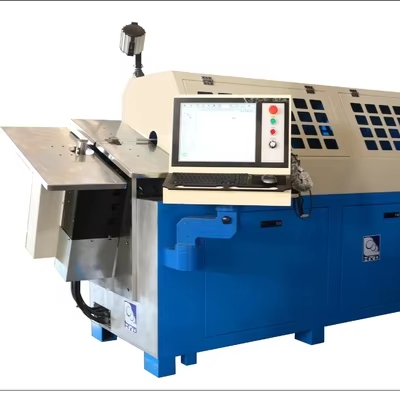

8 Axis 2D/3D Rotary CNC Wire Bending Machine Automatic Wire Bender for 2-10mm Wire

Подробная информация о продукте:

Место происхождения:	Гуандун, Китай
Фирменное наименование:	HYD

Оплата и доставка Условия:

Количество мин заказа:	1

контакт

Подробное описание продукта

Масса:	2800 кг	Напряжение:	380 В.
Власть:	12 кВт	Размер провода:	3,0-10,0 мм Ts≤500N
Сервоприводы:	10 топов	Система управления:	Выделенный компьютер с ЧПУ
Максимальная подача проволоки из бунта:	100000,0 мм	Мин проводной подача:	0,01 мм
Максимальная скорость провода:	> 60 м/мин	Длина питания провода:	неограниченный
Давление воздуха:	² 5-6kg/cm	Количество зондов:	2
Размер машины:	L2900W950H1620 мм	Motor Brand:	Sanyo/Yaskawa
Фаза:	3фаз
Выделить:	8 Axis CNC Wire Bending Machine , 2D/3D Rotary Wire Bending Machine , 2-10mm Automatic Wire Bender

8 Axis 2D/3D Rotary CNC Wire Bending Machine 2-10mm Automatic Wire Bender with Motor Core Component

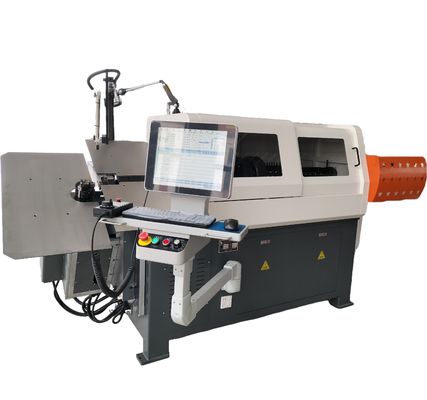

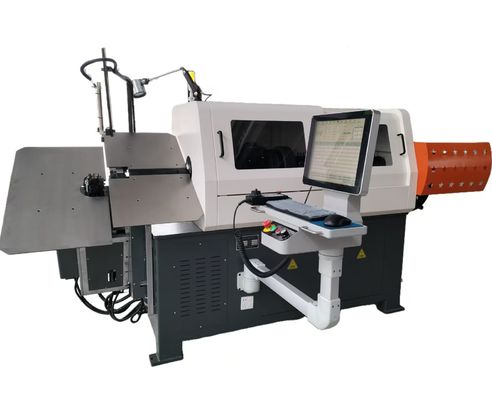

HYD-WR8A-100 Rotary Wire Type 3D Wire Bending Machine

Technical Specification	HYD-WR8A-80	HYD-WR8A-100
Wire Size	φ3.0-φ8.0mm TS≤500N	φ3.0-φ10.0mm TS≤500N
Servo Motors	8 axes	8 axes
Control System	Dedicated CNC Computer	Dedicated CNC Computer
Motor Brand	Sanyo/Yaskawa	Sanyo/Yaskawa
Max Wire Feed	10000.0mm	10000.0mm
Min Wire Feed	0.01mm	0.01mm
Max Wire Speed	>60m/min	>60m/min
Wire Feed Length	unlimited	unlimited
Power	3phase, 380V	3phase, 380V
Air Pressure	5-6KG/CM²	5-6KG/CM²
Probe	2	2
Machine Size	L2900W950H1620MM	L2900W950H1620MM

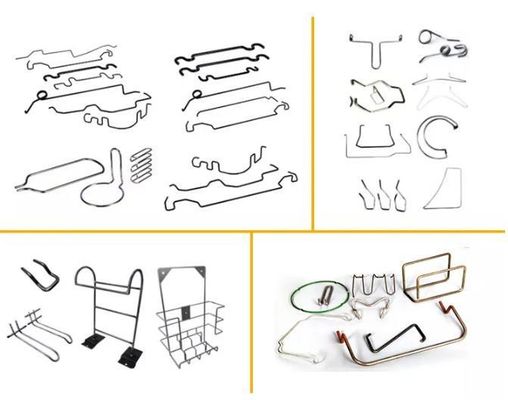

Application Scenarios

Product Categories

Why Choose Us

About Us

Transportation

Frequently Asked Questions

Q1: Can you send me the catalogue?

A1: Sure. We have different kinds of machines catalog here. Or you can also tell me what products you need.

Q2: Do you accept OEM?

A2: We can produce any of your requested designs.

Q3: Can it be configured with something else?

A3: Yes, We can customize the machine according to your product requirements.

Q4: Are you a factory?

A4: Sure. We are factory direct sales; welcome to visit our factory.

Q5: What information will be helpful in getting an accurate quotation from us?

A5: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc.

Q6: What is the power supply of the machine?

A6: The standard power supply in China is 380V, 3P, 50Hz. We also can customize as per requirement.

Q7: What is the payment term?

A7: The payment term is 30% deposit as PO confirmation, and 70% should be finished before the shipment. We also accept other payment terms.

Q8: What is the delivery time?

A8: Normally the manufacturing time of the machine is 30 days after receiving deposit. But it depends on machine model. Some machine production can be finished within 15 days.

Q9: What is the guarantee period of the machine?

A9: The guarantee period is one year from the date of B/L.

Q10: What is the MOQ?

A10: One set. We will make the machine suitable for you according to your needs.
